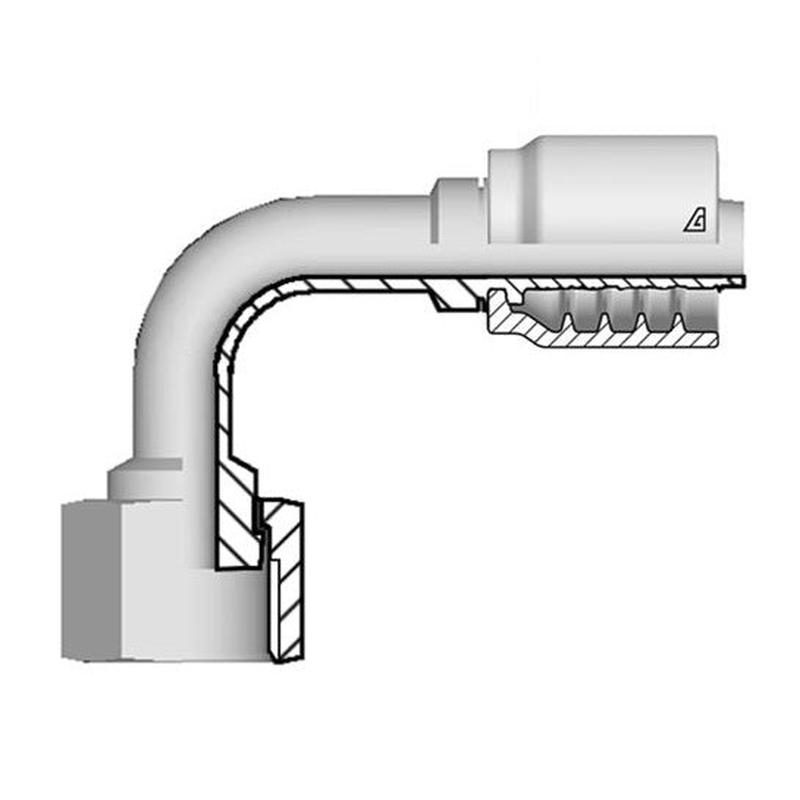

About B-Series Fittings:A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).Features:Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500…
100% Secure Payment & Data Safety
Global Delivery & Fast Dispatch
30 Days Free Return & Exchange
| About B-Series Fittings: |
|---|
|
| Features: |
|
| Material: |
|
| Part Number | Hose ID Size | F Thread Dia x Pitch | Tube OD | C Cut-Off Factor |
D Drop |
CH2 | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| DashSize | (in.) | (mm) | (mm) | (mm) | (mm) | (mm) | lbs/each | ||
| B-0412-FM9L | 04 | 1/4″ | 6.4mm | 12×1.5 | 6mm | 29.5mm | 26.0mm | 14mm | 0.13 lbs |
| B-0414-FM9L | 04 | 1/4″ | 6.4mm | 14×1.5 | 8mm | 28.3mm | 32.5mm | 17mm | 0.15 lbs |
| B-0416-FM9L | 04 | 1/4″ | 6.4mm | 16×1.5 | 10mm | 28.3mm | 32.5mm | 19mm | 0.17 lbs |
| B-0418-FM9L | 04 | 1/4″ | 6.4mm | 18×1.5 | 12mm | 28.3mm | 35.0mm | 22mm | 0.20 lbs |
| B-0516-FM9L | 05 | 5/16″ | 7.9mm | 16×1.5 | 10mm | 33.7mm | 38.0mm | 19mm | 0.20 lbs |
| B-0616-FM9L | 06 | 3/8″ | 9.5mm | 16×1.5 | 10mm | 32.8mm | 38.0mm | 19mm | 0.22 lbs |
| B-0618-FM9L | 06 | 3/8″ | 9.5mm | 18×1.5 | 12mm | 32.8mm | 39.0mm | 22mm | 0.25 lbs |
| B-0822-FM9L | 08 | 1/2″ | 12.7mm | 22×1.5 | 15mm | 39.8mm | 40.5mm | 27mm | 0.36 lbs |
| B-1026-FM9L | 10 | 5/8″ | 15.9mm | 26×1.5 | 18mm | 51.4mm | 48.0mm | 32mm | 0.53 lbs |
| B-1030-FM9L | 10 | 5/8″ | 15.9mm | 30×2.0 | 22mm | 52.4mm | 49.0mm | 36mm | 0.62 lbs |
| B-1230-FM9L | 12 | 3/4″ | 19.0mm | 30×2.0 | 22mm | 52.1mm | 59.0mm | 36mm | 0.75 lbs |
| B-1636-FM9L | 16 | 1″ | 25.4mm | 36×2.0 | 28mm | 77.6mm | 68.0mm | 41mm | 1.23 lbs |
