A-0404-FJ45 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45 Elbow | -04 Hose ID x -04 Female JIC 37 Swivel | Steel | Pack of 5

A-0404-FJ45 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45 Elbow | -04 Hose ID x -04 Female JIC 37 Swivel | Steel | Pack of 5

Read reviews (0)
$17.61 $14.088
Save 20%

About A Series Fittings:Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8"…

  • img 100% Secure Payment & Data Safety
  • img Global Delivery & Fast Dispatch
  • img 30 Days Free Return & Exchange
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16″ thru 2″.
    • Alfabiotech 3000 1-1/4″ and 1-1/2″.
    • Alfabiotech 4000 3/8″ thru 1-1/4″.
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) – TPI		 (mm) (mm) (mm) lbs/each
A-0404-FJ45 04 1/4″ 6.4mm 04 7/16-20 36.6mm 10.0mm 16mm 0.08 lbs
A-0405-FJ45 04 1/4″ 6.4mm 05 1/2-20 37.2mm 12.0mm 17mm 0.08 lbs
A-0406-FJ45 04 1/4″ 6.4mm 06 9/16-18 39.4mm 11.0mm 19mm 0.10 lbs
A-0506-FJ45 05 5/16″ 7.9mm 06 9/16-18 42.8mm 12.0mm 19mm 0.13 lbs
A-0606-FJ45 06 3/8″ 9.5mm 06 9/16-18 46.3mm 11.0mm 19mm 0.13 lbs
A-0608-FJ45 06 3/8″ 9.5mm 08 3/4-16 47.2mm 15.0mm 25mm 0.19 lbs
A-0808-FJ45 08 1/2″ 12.7mm 08 3/4-16 51.6mm 15.0mm 25mm 0.23 lbs
A-0810-FJ45 08 1/2″ 12.7mm 10 7/8-14 50.7mm 16.0mm 27mm 0.27 lbs
A-0812-FJ45 08 1/2″ 12.7mm 12 1-1/16-12 57.0mm 21.0mm 32mm 0.39 lbs
A-1010-FJ45 10 5/8″ 15.9mm 10 7/8-14 62.2mm 19.0mm 27mm 0.39 lbs
A-1012-FJ45 10 5/8″ 15.9mm 12 1-1/16-12 68.6mm 21.0mm 32mm 0.39 lbs
A-1212-FJ45 12 3/4″ 19.0mm 12 1-1/16-12 67.5mm 21.0mm 32mm 0.62 lbs
A-1214-FJ45 12 3/4″ 19.0mm 14 1-3/16-12 67.6mm 23.0mm 36mm 0.51 lbs
A-1216-FJ45 12 3/4″ 19.0mm 16 1-5/16-12 71.4mm 26.0mm 38mm 0.62 lbs
A-1616-FJ45 16 1″ 25.4mm 16 1-5/16-12 79.5mm 24.0mm 38mm 0.88 lbs
A-1620-FJ45 16 1″ 25.4mm 20 1-5/8-12 81.9mm 37.0mm 50mm 1.28 lbs
A-2020-FJ45 20 1-1/4″ 31.8mm 20 1-5/8-12 97.1mm 37.0mm 50mm 1.56 lbs
A-2024-FJ45 20 1-1/4″ 31.8mm 24 1 7/8-12 107.0mm 39.5mm 55mm 1.74 lbs
A-2424-FJ45 24 1-1/2″ 38.1mm 24 1-7/8-12 112.7mm 43.0mm 55mm 2.09 lbs
A-3232-FJ45 32 2″ 50.8mm 32 2-1/2-12 159.9mm 67.0mm 70mm 2.21 lbs

We offer fast and reliable shipping worldwide. All orders are carefully packaged and shipped within 1–3 business days after payment confirmation.

  • Fast shipping within 1-3 business days
  • Free shipping on orders over $40
  • 30 days money back guarantee
  • 24/7 online customer support
  • Secure packaging & safe delivery

Standard shipping, expedited shipping and express delivery options are available at checkout. Delivery time depends on your destination country and local logistics.

Only logged in customers who have purchased this product may leave a review.

You might also like

Add Related products to weekly line up

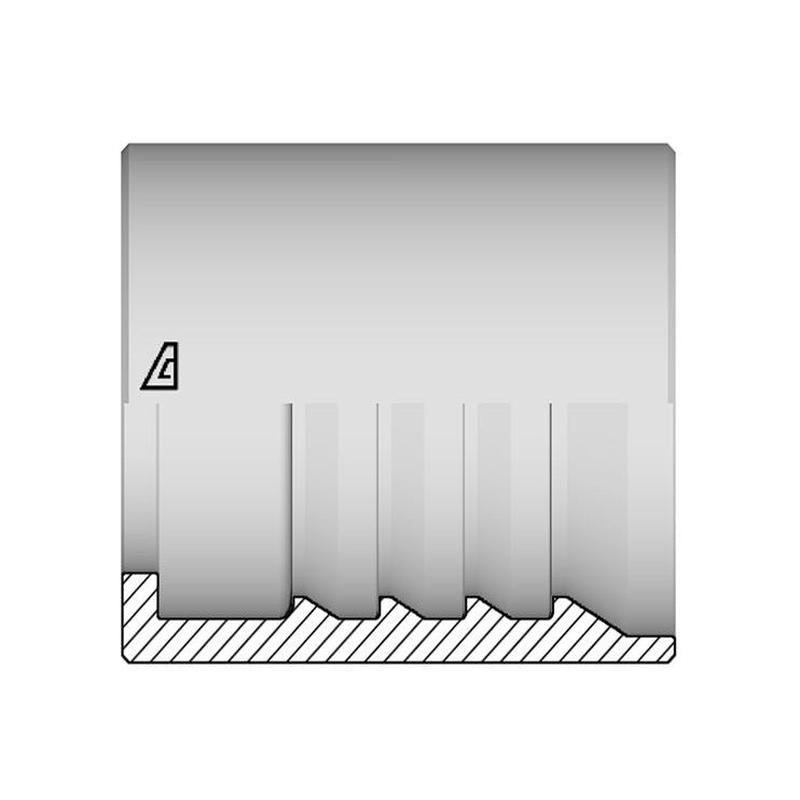

-20% AS4-08-SS Alfagomma by Kuriyama | A Series / AS4 Series | Two-Piece Skive Ferrule | -08 Hose Dash Size | 1/2" Hose ID | Stainless Steel AS4-08-SS Alfagomma by Kuriyama | A Series / AS4 Series | Two-Piece Skive Ferrule | -08 Hose Dash Size | 1/2" Hose ID | Stainless Steel
